ISO9001 Instant Noodle Production Line 200000 Bags / 8H Fried Noodle Machine

Energy Saving Fried Instant Noodle Production Line 200000bags8H Efficient

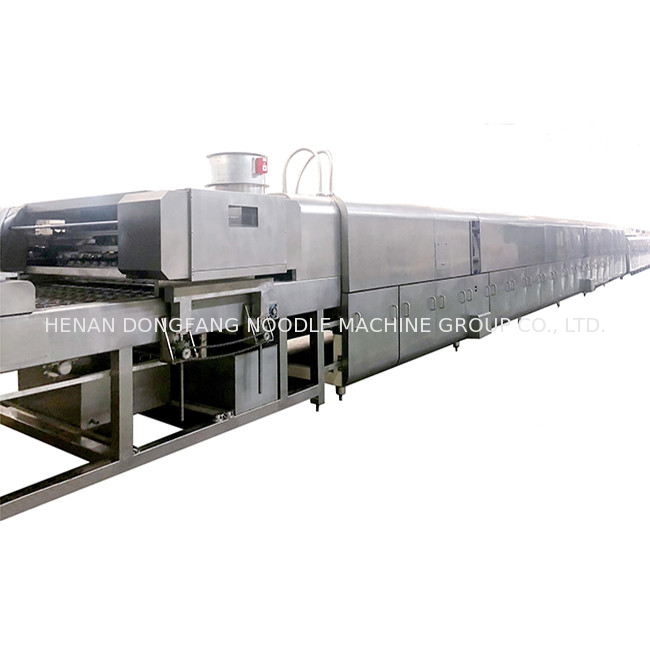

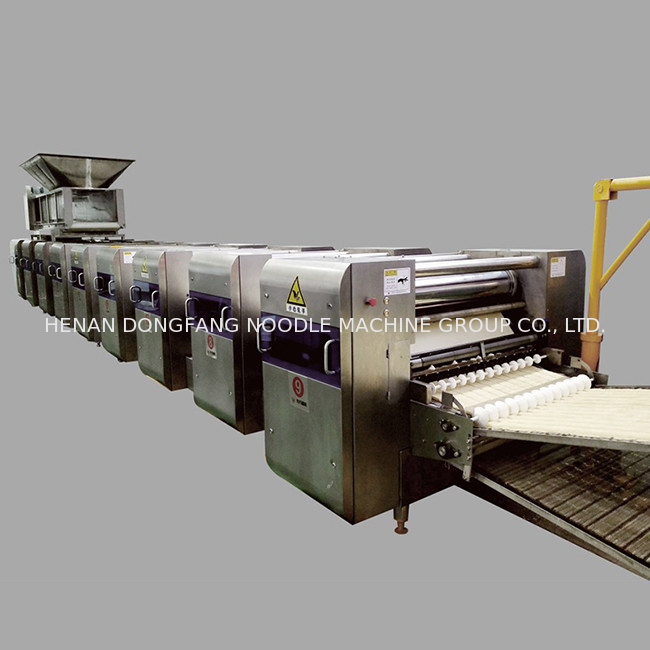

The instant noodle production line is composed of brine mixer, brine measuring device, dual-axis mixer, ripen conveyor, single rollers, multi layer steamer, square noodle cutting and dividing machine, fryer, cooling machine, conveyor and other unit machines.

The Working Principle of Square Noodle Cutting Machine:

The motor speed adopts frequency control. The synchronization of cutting-dividing and dryer as well as the accurate access to the box are controlled by the programmable controller. Rely on the weight of mesh belt, steamer net adopts droop method to automatically tighten itself. It has simple structures and reliable effects. Active force uses two helical gear reducer. The roll of noodle steamer network is individually driven by a motor. Sorting, folding, cutting, clipping roll is driven by another motor which is driven by a series of sprocket pairs and drive gears respectively.

Main Technical Parameters:

Approaches of Increasing the Length of the Noodles:

Maintain the linear speed of the compression roll constant and increase or decrease the linear speed of the noodle steamer network so that the noodle length can be lengthened or shortened.
