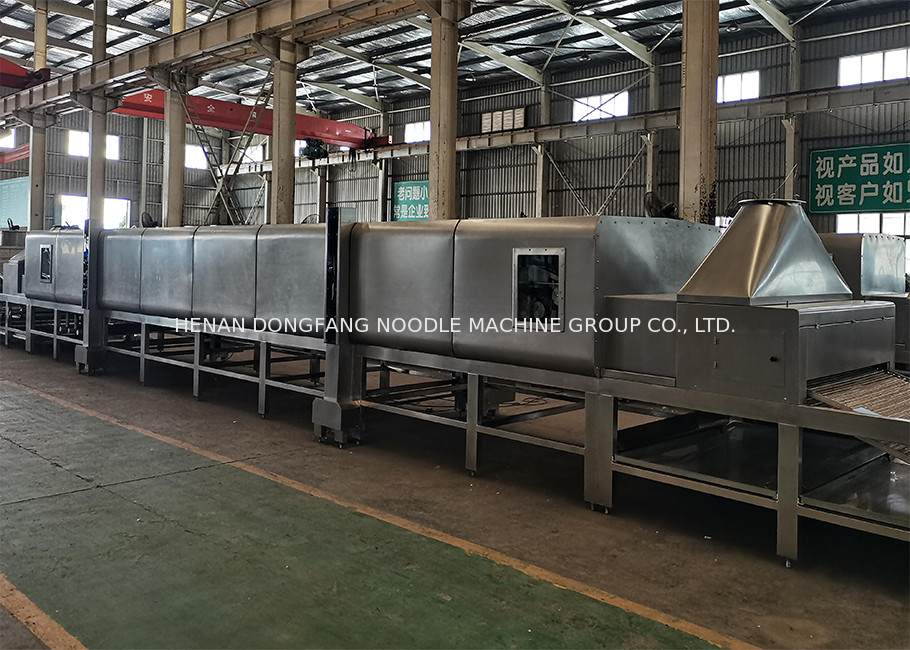

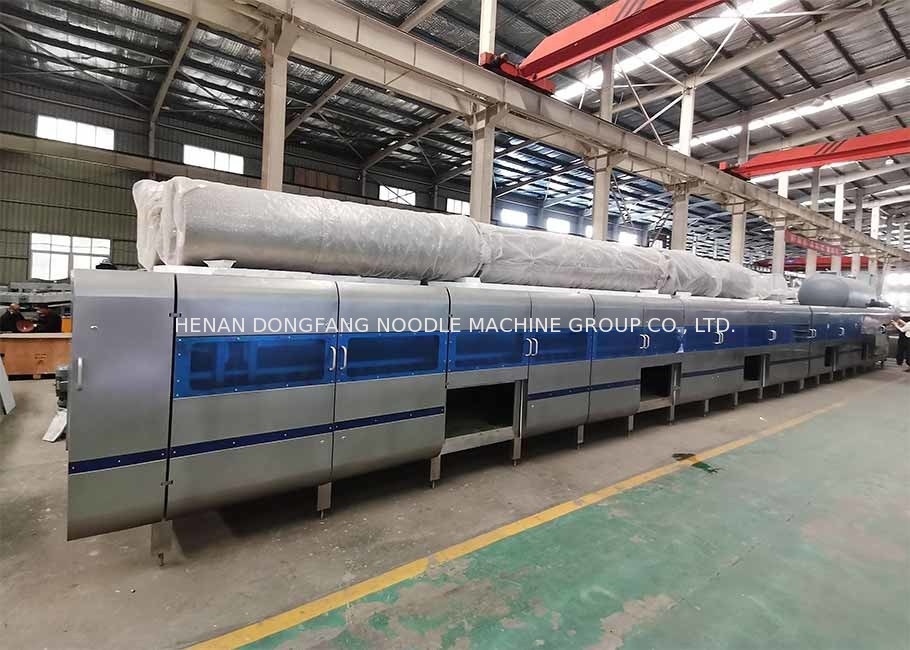

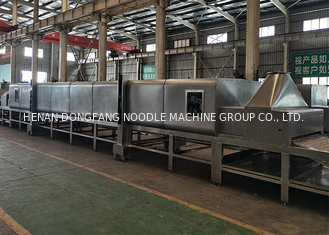

Convenient Frying Instant Noodle Production Line Automatic Noodle Maker
The company was founded in 1975 and has a history of more than 45 years. It is a company specializing in the research, development, manufacture and sale of "Dongfang" brand instant noodle production lines, dried noodle production lines, ripen (raw) fresh noodle production lines, extruded noodle production lines and other noodle machinery.
Main Structure of Dough Ripening Machine:
The machine is made up by the aging tank, conveyor chains, chassis and transmission parts. In the insulation state, conveyor chains and dough belt goes up and down repeatedly to proceed dough making in curing box, which improves the quality of the dough belt and lays a good foundation for future continuous tableting. Casement windows are installed on both sides of the aging tank to observe the movement of the dough belt.
Use of Square Noodle Cutting Machine:
The machine has been used to cut off and fold the corrugated and steamed noodles quantitatively and then transport the instant noodle into the frying machine box.
Main Technical Parameters:
|
Type |
Automatic Instant Noodle Maker |
|
Steam Consumption |
3500KG/hour |
|
Total Power |
170KW |
|
Voltage |
380V 50HZ |
|
Noodle Box Dimension |
70g or customized |
|
Delivery Date |
150 days |
Our products are sold all over the world, you can rest assured.
