Energy Saving Brine Mixer Dried Noodle Making Machine Equipment 380V 50HZ

Energy Saving Brine Mixer Dried Noodle Making Machine Equipment 380V 50HZ

  • High Light

    Brine Mixer Dried Noodle Making Machine

    ,

    noodle making equipment 18T/24h

    ,

    18T/24h Dried Noodle Making Machine

  • Name
    Energy Saving HNT-450Stick Noodles Production Line
  • Warranty
    1 Year
  • Dimension
    Customized
  • Voltage
    380V/50HZ,220/380V,380V,Request
  • Application
    Making Different Type Noodles
  • Function
    Produce Noodle,noodle Equipment
  • Place of Origin
    Henan, China
  • Brand Name
    Dongfang
  • Certification
    ISO9001, CE
  • Model Number
    HNT-450
  • Minimum Order Quantity
    1 SET
  • Price
    Negotiable
  • Packaging Details
    Simple packaging; wooden box packaging
  • Delivery Time
    60-120days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    200 sets per year

Energy Saving Brine Mixer Dried Noodle Making Machine Equipment 380V 50HZ

Energy Saving Stick Noodles Production Line 18T/24h Dried Noodle Making Machine



According to the new needs of large and medium-sized stick noodle enterprises, Dongfang develops automatic stick noodle production equipment with the characteristics of high production capacity, automation, and low energy consumption.



Production Process:



Flour Feeding--Dual-axis Mixing--Ripen Conveying--Single Rolling--Continuous Rolling--Rod Feeding--Up-shelve--Automatic Drying Room--Down-shelve--Noodle Cutting--Packaging



Energy Saving Brine Mixer Dried Noodle Making Machine Equipment 380V 50HZ 0



Technical Parameters:



Product Name Energy Saving Stick Noodles Production Line
Production Capacity 18T/24h
Mixing Time 20min
Aging Time About 15min
Drying Time 4-5 hours
Roller Size 450mm

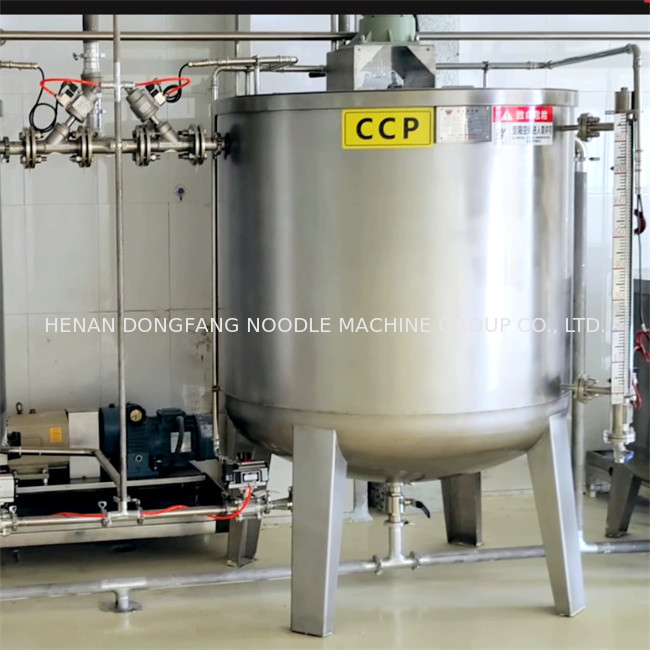

Brine Mixer:



The brine mixer is used to prepare a mixture of salts, bases, additives and water required for the dough.
Main structure: The brine mixer consists of a mixing tank, a blender, a heating tube, an infusion tube and an infusion pump. The mixing tank, mixing shaft, heating tube, infusion tube and infusion pump are all made of stainless steel. The transmission parts are made of ordinary steel or cast iron. The reducer is connected to the main shaft via a coupling, and the mixing wheel is fixed to the main shaft. The reducer drives to rotate the mixing wheel to stir the mixture. A steam pipe is installed in the tank body, and when the water temperature is low, the liquid can be heated to accelerate the solid dissolution rate. The uniformly mixed liquid is pumped into the buffer tank and then input into the dough mixer by the buffer tank.



Energy Saving Brine Mixer Dried Noodle Making Machine Equipment 380V 50HZ 1



Energy Saving Brine Mixer Dried Noodle Making Machine Equipment 380V 50HZ 2
